Accessories
G II
Solutions offers numerous accessories for use in addition to the standard
package. The most common accessories are pictured and described below.
Electrical Enclosure
With the standard control package, the control panel
is intended to be mounted in the existing machine’s electrical
enclosure. If un desirable or not possible, G II Solutions will
provide the control panel in a stand-alone Nema 12 enclosure. With
this configuration, the manual controls are relocated from the
control panel to the door of the electrical enclosure. The standard
configuration positions the bulkhead connector in the enclosure’s
lower right face. |
 |
Remote Pendant
 |
A handheld pendant offers manual control remote of
the central control system and exterior to the grinder. |
Extension Cable
When the distance
between the spindle and the
control panel is excessive, over
about 40 feet, it may be
desirable to use an extension
cable. This cable attaches to
the spindle electrical connector
on one end and to the bulkhead
connector from the control panel
on the other end. The standard
extension cable is supplied in
watertight conduit. |
|
 |

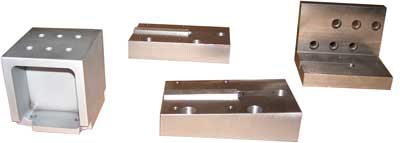

Bracketry
Most
applications require a
custom bracket to mount the
spindle to the grinding
machine. G II Solutions have
developed various brackets
for different spindle /
grinder combinations and
often have the more popular
combinations in stock. |
|
 |
|
